7447779115
Manufacturer:
Wurth Electronics
Mfr.Part #:
7447779115
Datasheet:
Description:

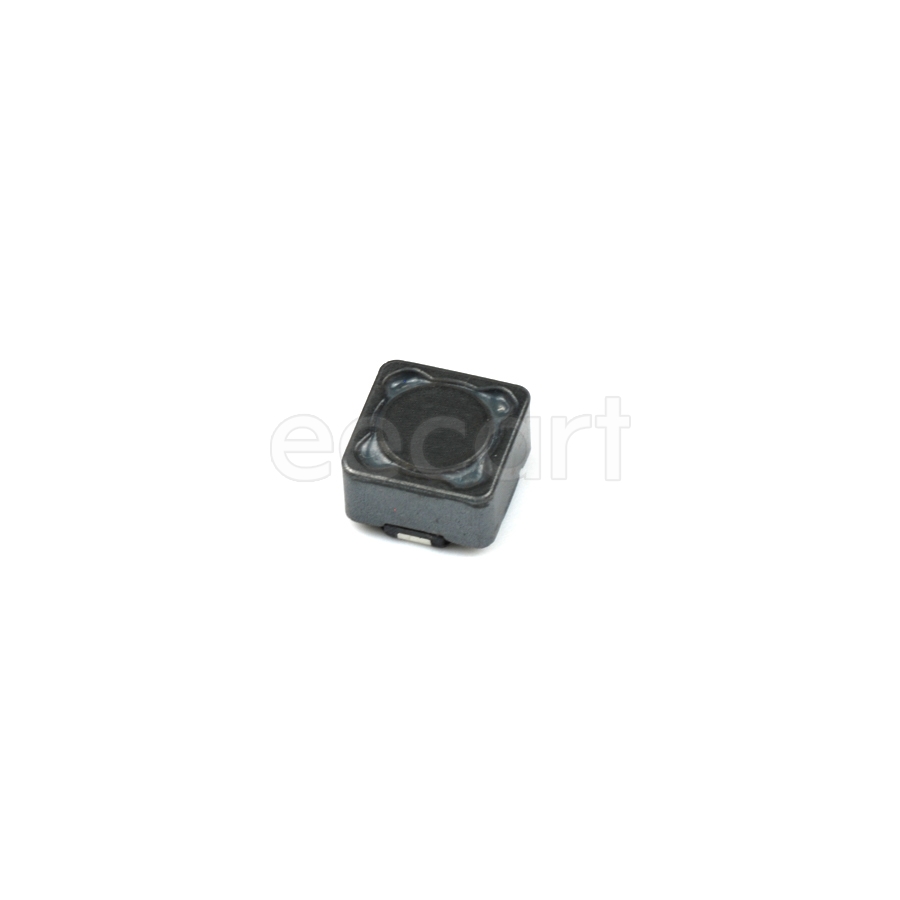

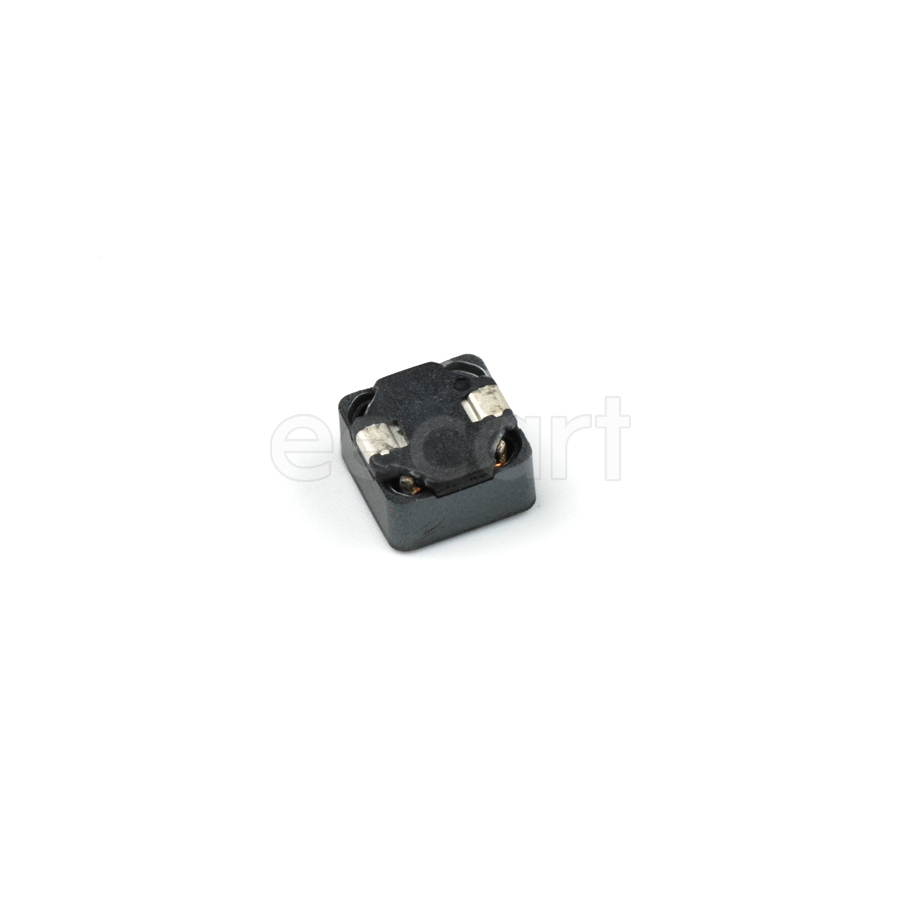

Fixed Inductors 7.30mmL×7.30mmW×4.50mmH SMD/SMT 15 µH 20 % 1.6 A 81 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 7.3 mm |
| Width | 7.2898 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 81 mΩ |
| Composition(Kit Type) | Wirewound |
| Height | 1.5 mm |
| Packaging | Reel |
| Depth | 7.3 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 4.535924 g |
| Self Resonant Frequency | 19 MHz |
| Current Rating | 1.6 A |
| DC Resistance (DCR) | 81 mΩ |
| Test Frequency | 1 kHz |
| Shielding | Shielded |
| Inductance | 15 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.6 A |
| inductance tolerance | 20 % |
| Max DC Current | 1.6 A |
| Series Resistance | 81 mΩ |
| Saturation Current | 2.2 A |
| Type | Wirewound |
Stock: 271
Distributors
pcbx
pcbxUnit Price$1.48289
Ext.Price$1.48289
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48289 | $1.48289 |
| 10 | $1.31772 | $13.17720 |
| 25 | $1.26992 | $31.74800 |
| 50 | $1.22386 | $61.19300 |
| 100 | $1.17693 | $117.69300 |
| 300 | $1.15291 | $345.87300 |
| 500 | $1.12938 | $564.69000 |
| 1000 | $0.93141 | $931.41000 |
